Super
High-brightness LED Replacement lamps for Schneider-Telemechanique XB7EV8.P
and
IZUMI
IDEC TW Series 22mmØ Transformer Pilot Lights
|
Data Sheet: |
SEL-1025-2X06V
|
1.
Application
Super High Brightness
LED Replacement lamp for
G-11x23mm 6.3V
1W BA9s used in IZUMI-IDEC
22mmØ TW Series Control Units and T-10x28mm
6V 1.2W BA9s
lamp used in Schneider-Telemechanique
XB-7EV8.P
Transformer Pilot Lights.
2.
Features
Super High Brightness
Shock-Resistant,
Cool operation,
Low-power
Consumption 6-7V 6-10mA
Long-Life
Expectancy Over 50,000 Hrs!
Available in
Super-Red, Super-Green,
Super-Amber
and Super-Blue.

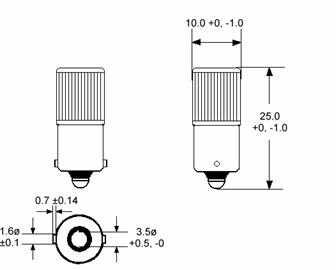

3. Physical Size
Diameter: 10.0mm + 0 / –1.0mm
Length: 25.0mm + 0 / –1.5mm
4. Lamp Base
Miniature Bayonet
Din 49712 BA9S
5. Lamp Type
Super High Brightness LED with internal
protection diode.
6 . Electrical Rating
|
SEL P/N |
Voltage |
Current |
Color |
Typical mcd
|
|
1025-2R06 |
6-7V AC/DC |
8-15mA |
Super-Bright Red 660nm |
1000-1890mcd |
|
1025-2G06 |
6-7V AC/DC |
8-15mA |
Super-Bright Green 520nm |
810-1350mcd |
|
1025-2A06 |
6-7V AC/DC |
8-15mA |
Super- Bright Amber 585 |
960-1800mcd |
|
1025-2B06 |
6-7V AC/DC |
8-15mA |
Super-Bright Blue 470nm |
900-1687mcd |
7. Remarks
LED replacement lamp
for G-11x23mm 6.3V 1W BA9s incandescent filament lamp bulb used in IZUMI IDEC
22mmØ TW Series Control Unit. (Transformer Pilot Light).
LED replacement lamp for T-10x28mm 6V
1.2W incandescent filament lamp bulb (P/N DL1-CB006) used in Schneider-Telemechanique
XB-7EV8.P Transformer Pilot Light.
